Incorporating new in house engineered and designed optics partnered with OSRAM LED technology and styling updates, the ARB Intensity Solis™ has pushed the limits of driving light technology once again and produced a uniquely designed, feature packed and highly capable driving light in small version and ready for legal fitment & on road use in European countries.

The ARB Intensity Solis™ 21 LED (7’’) Driving Lights are offered in dedicated combination optic tuned for on and off-road use. The lights are E-mark approved (following UNECE R149 regulation*).

All ARB Intensity lights are designed to maximise the output in all driving conditions and provide increased life expectancy of the light compared with cheaper lighting options in the market.


  • 21 Osram LED (15x 4W + 6x 5W)
  • 50,000+ Hour LED life span
  • Colour Temperature: 5700 Kelvin (a warmer light colour to help reduce eyes strain)
  • Raw Lumens 9133LM
  • 9° full beam width.
  • Operating Temperature: -40°C to +65°C, -40°F to +149°F.
  • Single light dimensions: 192mm (7.56”) H x 190mm (7.48”) W x 114mm (4.49)” D
  • Weight 2.73kg (6.02lbs)
  • Intensity level #3: Distance @ 1Lux – 426m (single light)
  • Intensity level #5: Distance @ 1Lux – 620m (single light)
  • Virtually unbreakable polycarbonate lens
  • UV stable moulded polycarbonate lens cover
  • High pressure die-cast aluminium body and mount with variable positions (brings the light lower on its fastening position)
  • Touchpad with dimmer control + on road & off-road mode
  • On road mode in line with European UNECE R149 certification requirements*
  • Hard wired according to EU road use requirements
  • Intelligent active thermal management
  • Dust and waterproof to IP68
  • Durable UV stable powder coat
  • Simple installation with plug & play harness
  • Added black PCB boards to create a deep look into the lights
  • Red/black bezels included, optional amber/black covers
  • High quality with increased life expectancy
  • 3-year warranty
  • Sold as a set of 2 lights
  • Fully developed in-house by the ARB engineering team in Melbourne, Australia
  • Refined look with black PCB boards creating a deep look into the lights
Photometric data

Many months were spent by the engineers designing and refining an optic that captures the most amount of light, removes flat spots on the optic face and controls the beam into the right area to reduce stray light and maximise the potential of each LED.

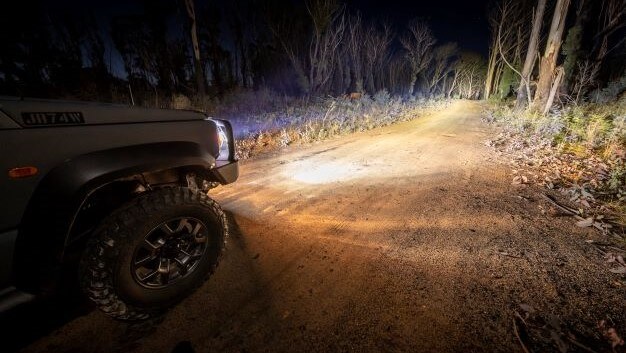

A single ARB Intensity Solis™ 21 provides 620m @ 1 Lux on setting #5 in off-road mode. The ARB Intensity Solis™ 21 on setting #3 provides 426m @ 1 lux with up to 40m spread from the vehicle in on-road mode. In dual combo off-road configuration, the distance down the road is a very impressive 877m @ 1 lux on setting #5 and dual combo configuration on setting #3 on-road modes it’s a competitive 603m @ 1 lux.

As well as distance, a warmer light colour helps to reduce eye strain over long driving periods and improves driver comfort while assisting to reduce fatigue.


  • 2 x Lights & 2 x Clear cover
  • 2 x Mounting bracket & Mounting hardware kit
  • UV-resistant interchangeable red or black bezels to suit
  • Wiring loom with dimmer (touchpad)

* R149 is an updated UNECE regulation, which includes the rules from the previous R112 regulation. R112 is not valid anymore.
