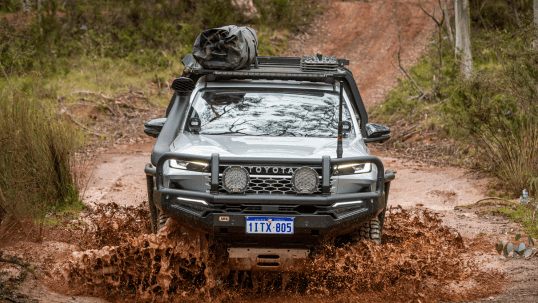

SUMMIT MKII BULL BAR

The ARB Summit Bar MKII is now released for the ever popular Toyota Hilux and has been designed to be fully integrated with Toyota’s Intelligent safety technology better known as Toyota Safety sense. The state-of-the-art Summit Bar MKII takes key components of it’s flagship namesake and kicks it up a notch with an ultra-modern design that’s constructed to turn heads. Hilux Bars have just gotten better!

Summit MKII has eliminated front buffers and now has robot welds on the front face of the bar to highlight the sheet metal fabrication excellence of ARB. Fog light design has been significantly updated to include a plug and play indicator / clearance light / Daytime Running Light and fog light within one complete unit for an integrated approach to incorporate these requirements on modern vehicles.

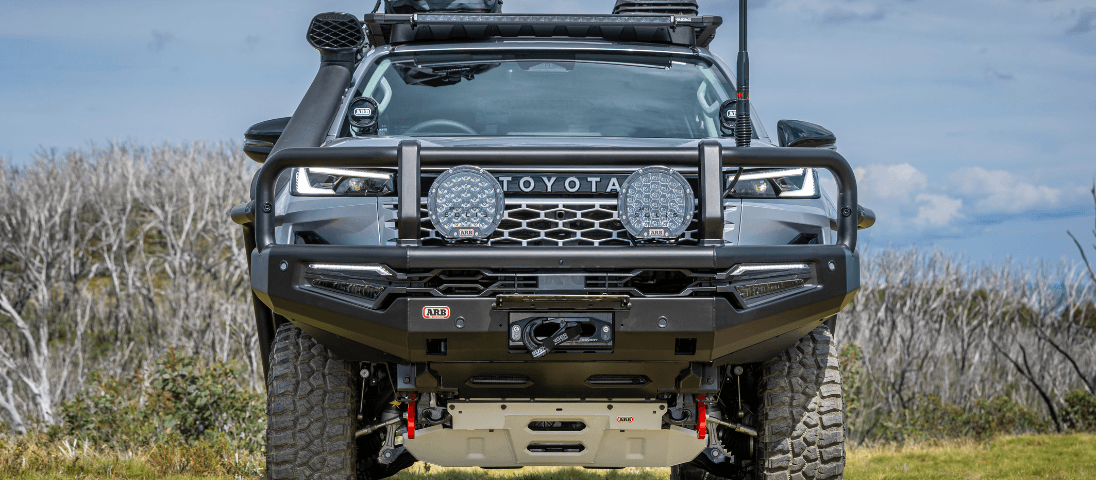

hilux-mkii-1096×480-1
hilux-mkii-1096×480-2

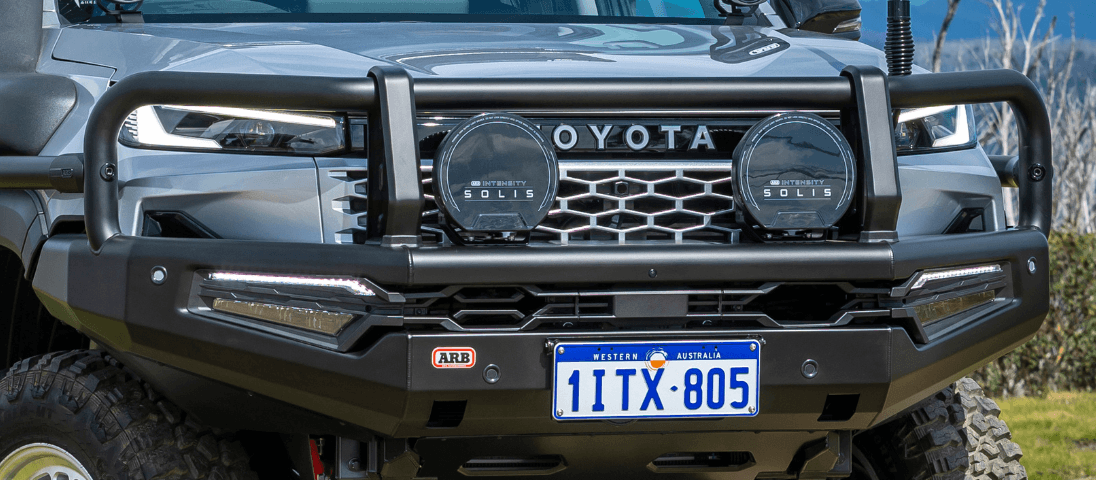

hilux-mkii-1096×480-3
hilux-mkii-1096×480-4

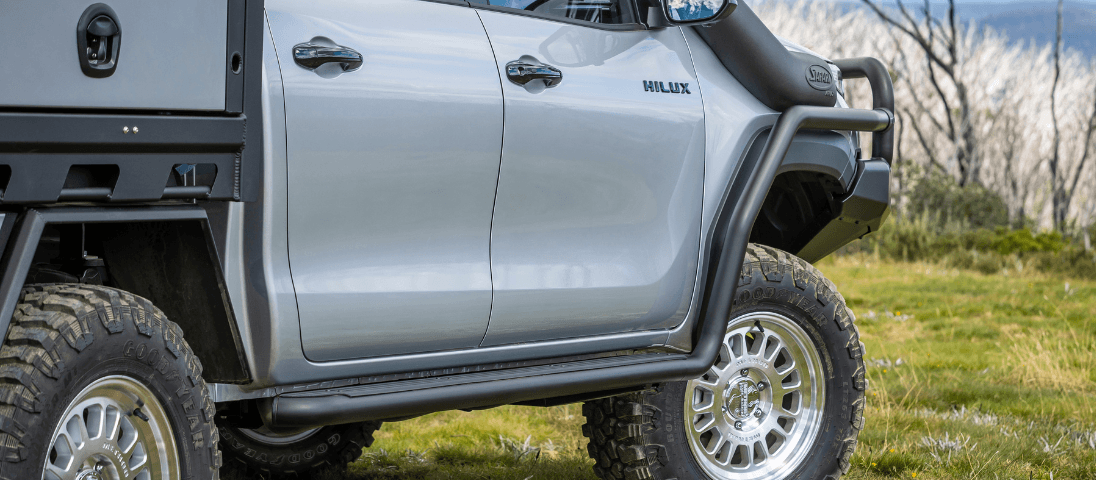

hilux-mkii-1096×480-5

FEATURES

summit_mkii_878x640

AERIAL COMPATIBILITY

Two aerial brackets located on the centre frame.

AERIAL COMPATIBILITY

Two aerial brackets located on the centre frame.

SUPERIOR PROTECTION

60.3mm outer frames and centre cross tube.

PREMIUM FINISH

Metaprep primer for additional corrosion resistance, finished in matt black powder coat.

REGISTERED DESIGN OF STYLING AND DESIGN COMPONENTS

Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach angle.

JACK COMPATIBILITY

Twin ARB Jack or Hi-Lift jack points located in the lower pan.

WINCH COMPATIBILITY

Will accommodate Warn, Magnum, Bushranger, Smittybilt low mount model electric winches up to 10,000lb. Pressed form top pan and aluminium (powder coated matt black) winch cover panel.

LIGHT COMPATIBILITY

Provision to accommodate ARB Intensity and Solis LED’s and a range of Bushranger and IPF lights.

VEHICLE SPECIFIC DESIGN

Compatible with original equipment safety features.

PURPOSEFUL DESIGN

Extensive protection panels on centre and either side. 30mm radius on wings and centre section.

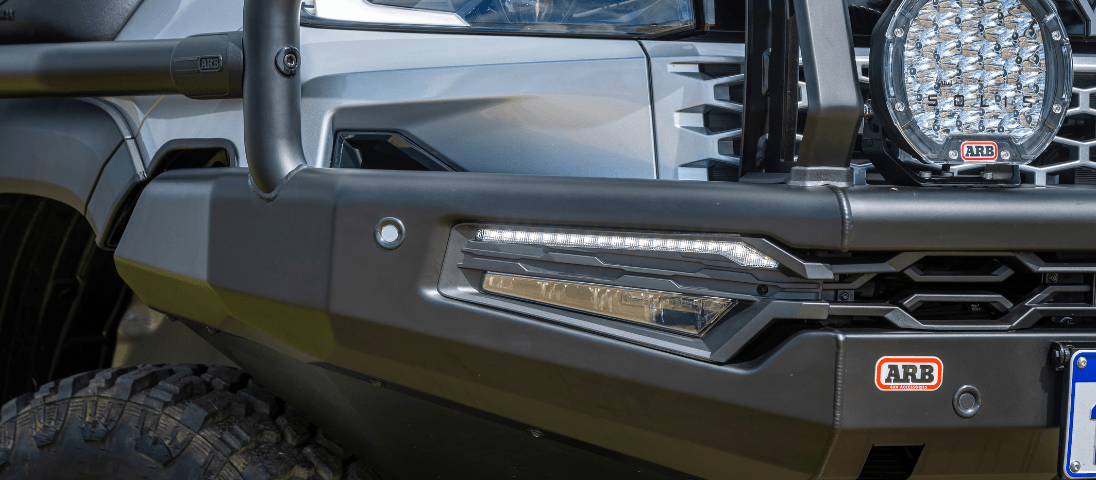

LIGHT CLUSTER

Includes ARB LED fog light, LED daytime running light (DRL), LED sequential indicators and clearance lights.

UNRIVALLED SAFETY

Durable steel construction for maximum protection. Engineered, air bag compatible mounting system secures to the chassis via high tensile bolts.

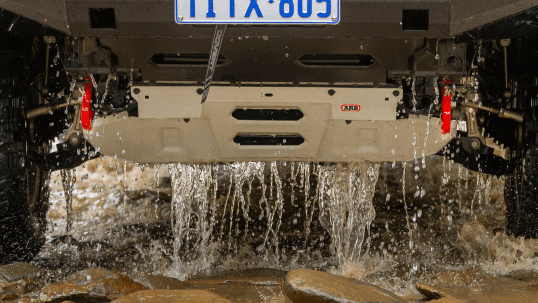

UNDER VEHICLE PROTECTION

Providing an unrivalled safeguard for the underside of your vehicle, ARB’s Under Vehicle Protection (UVP) is laser cut, press formed and folded to provide superior strength.

Designed to the specifications of the Toyota Hilux, it minimises the risk of damage to most vital components of the vehicle drivetrain.

For additional protection, optional lower suspension arm guards are also available.

FEATURES

  • 3mm pressed and folded sheet steel adds more strength than a standard folded sheet
  • Laser cut sheet steel
  • UVP panels zinc plated and powder coated in a silver textured finish
  • All steel components are protected with either powder coat or zinc plating
  • Recessed mounting bolts are protected and easy to remove for vehicle servicing
  • Front panel protects power steering, stabiliser bar and engine
  • Differential/sump panel protects front differential, front mounts and rear of engine sump
  • Under vehicle protection for the Toyota Hilux consists of transfer case panels. Each attaches with a chassis mounted transfer case
  • Compatible with ARB forged recovery points
  • Kit includes illustrated fitting instructions
