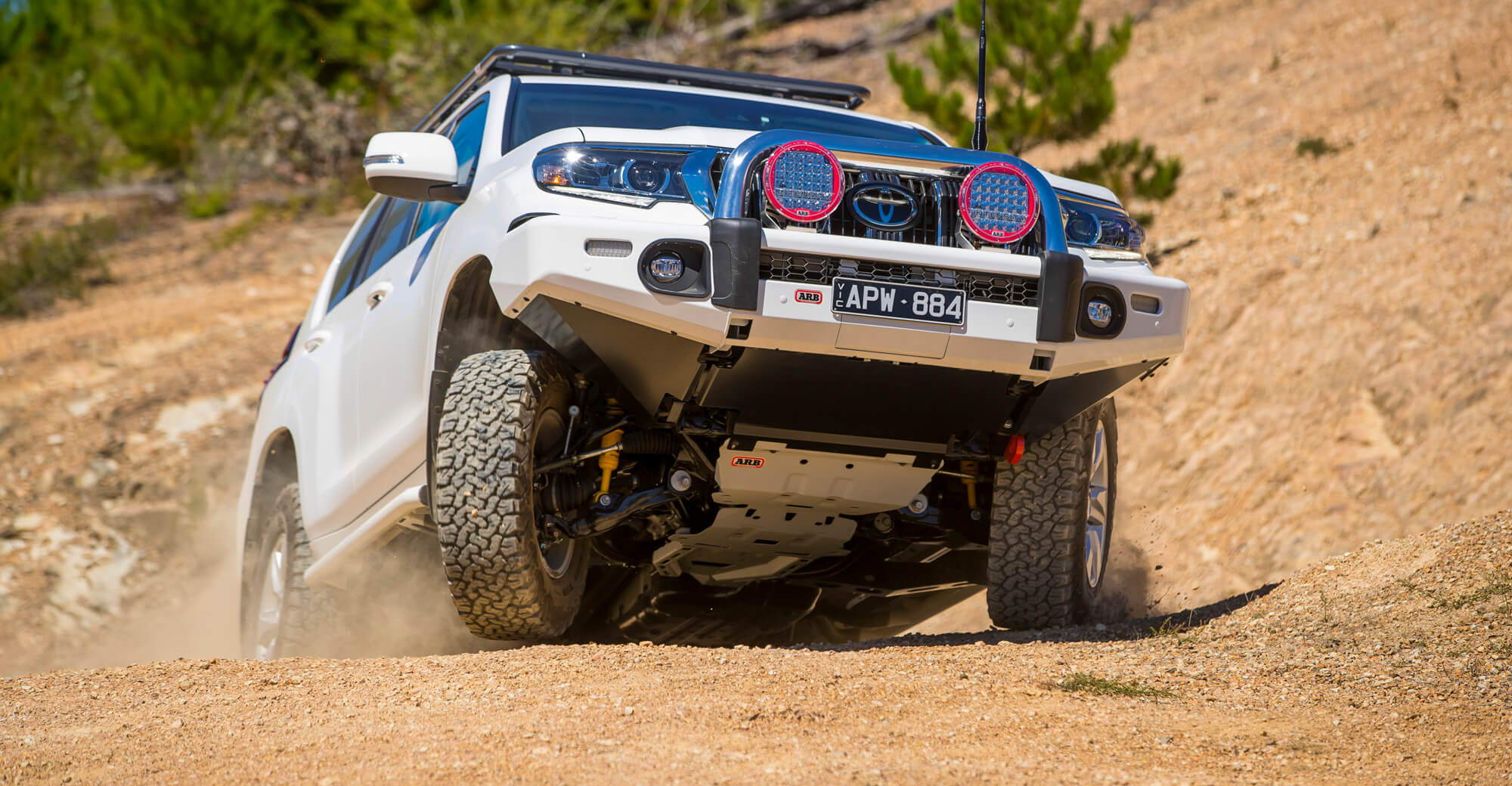

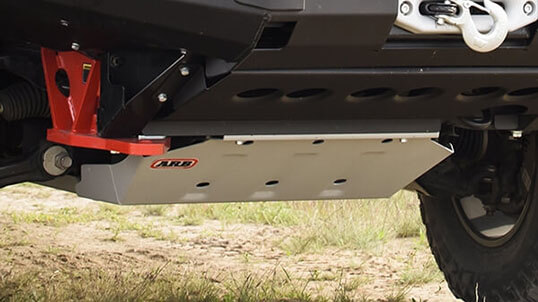

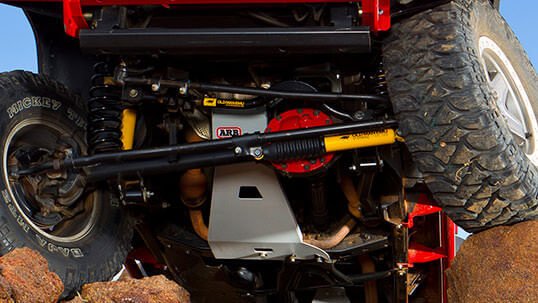

ARB Skid Plates or Bash Plates as they’re otherwise known, are designed to give protection to vital underbody components including steering, engine oil pan, transmission and transfer case.

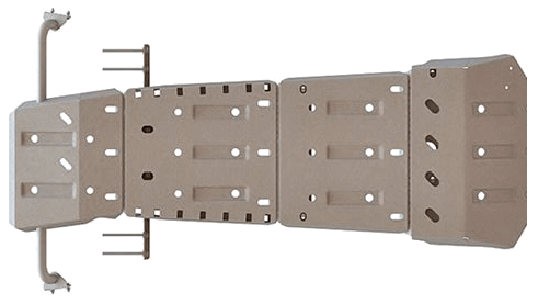

Laser cut, press formed and folded 3mm sheet steel is used in ARB skid plates/bash plates to provide superior strength and protect vulnerable under-vehicle components. The ARB Under Vehicle Protection consists of four carefully designed panels. The front, engine, transmission, and transfer case panels bolt directly to the chassis and cross members to provide continuous under-vehicle protection from the front of the vehicle to the transfer case.
ARB’s under vehicle protection systems are specifically designed for each vehicle and engineered to provide a shield for vulnerable under body components such as the steering, sump, transmission and transfer case.
• Pressed and folded 3mm laser cut steel provides more strength than folded steel alone and allows optimum strength to weight ratio
• Securely bolted to the vehicle’s chassis providing outstanding structural integrity
• All steel components are zinc plated and powder coated in a silver textured finish
• Recessed mounting bolts are protected and easy to remove for vehicle servicing.

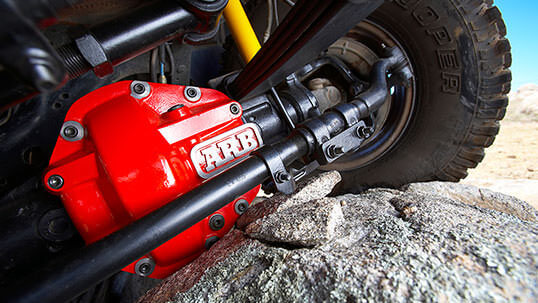

When off-road, it is inevitable that you’ll encounter obstacles that could potentially inflict expensive damage on your differential. ARB’s differential cover provides increased protection over factory diff covers, giving you peace of mind to tackle more challenging terrain.
Each cover is manufactured from high tensile nodule iron to protect the ring and pinion set whilst computer-optimized cross bracing increases the structural integrity of the entire axle.
ARB diff covers are powder coated either red or black, CNC machined, then clear coated for a durable, professional, long-lasting finish.
